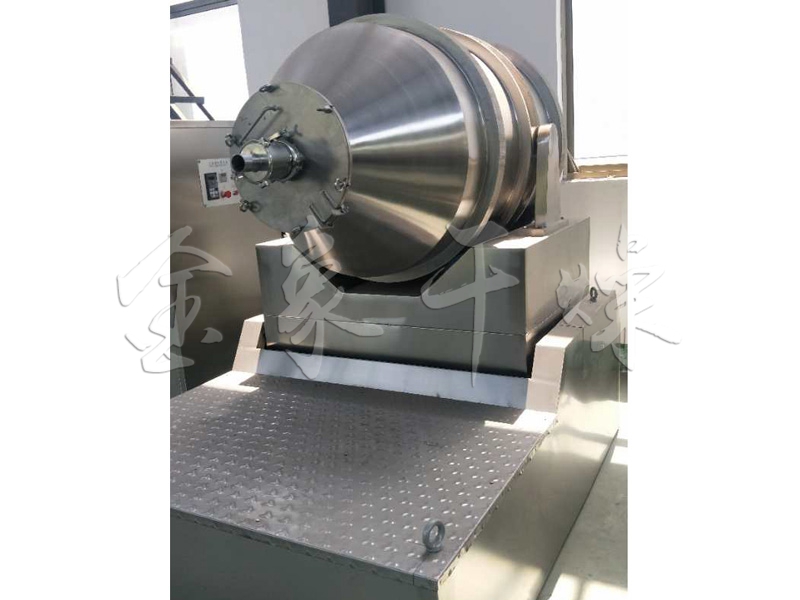

EYH Series Two-dimensional Motion Mixer
EYH Series Two-dimensional Motion Mixer
Detailed description
Working principle
??
Two-dimensional mixer mainly consists of three parts: drum, swing frame and frame. The rotating drum is mounted on a swinging frame and is supported by four rollers and axially positioned by two stop wheels. Among the four supporting rollers, two of the driving wheels are dragged by a rotating power system to rotate the rotating drum. The swing frame is driven by a set of crank rocker mechanisms. The crank rocker mechanism is on the frame and the swing frame is supported by the bearing assembly on the frame.
Performance Features
??
The drum of the EYH two-dimensional blender can simultaneously perform two movements, one for the rotation of the drum and the other for the swing of the drum with the swing frame. The mixed material rotates, flips, and mixes with the rotating drum in the drum, and at the same time, the back and forth mixing movement occurs along with the swing of the drum. Under the joint action of these two movements, the material is fully realized in a short time. the mix of. EYH two-dimensional blender is suitable for mixing all powder and granular materials.
Technical specifications
| Specifications | Volume (L) | Loading factor | Loading weight (kg) | Overall size (mm) | Power (kw) | ||||||
| A | B | C | D | M | H | Rotating | swing | ||||
| EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1,000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 0.5 | 75 | 1,000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1,000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 0.5 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
NOTE: Material Press bulk specific gravity 0.6 g of / cm & lt . 3 is a meter, such as beyond, indicate when ordering.
