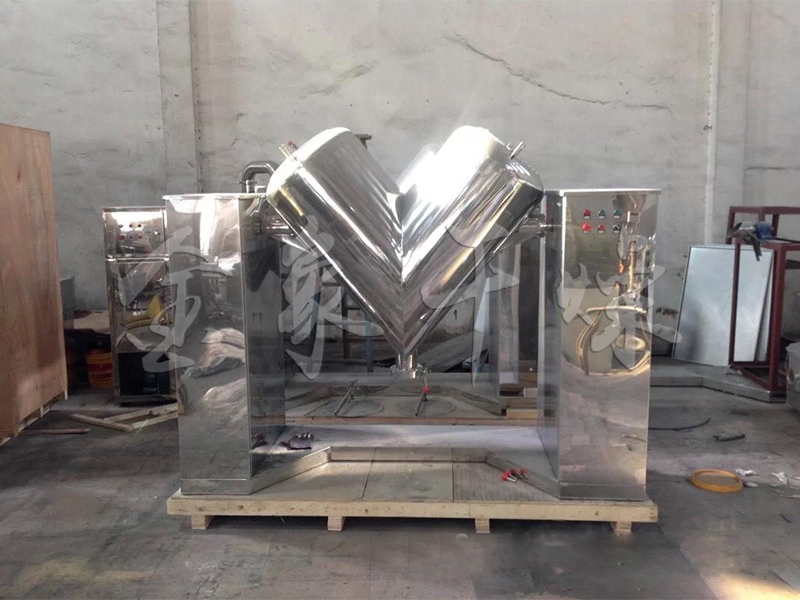

VHJ series mixer
VHJ series mixer
Summary：Application range: This machine is suitable for the mixing of two or more dry powdery and granular materials in the pharmaceutical, chemical, food and other industries.The machine has a unique structure, high mixing efficiency, no dead angle, stainless steel material, polished inner and outer walls, beautiful appearance, uniform mixing, wide application surface, and can be equipped with a forced a···
Detailed description
Application range:
This machine is suitable for the mixing of two or more dry powdery and granular materials in the pharmaceutical, chemical, food and other industries. The machine has a unique structure, high mixing efficiency, no dead angle, stainless steel material, polished inner and outer walls, beautiful appearance, uniform mixing, wide application surface, and can be equipped with a forced agitator according to user requirements. The powder, block, and materials containing a certain amount of water are mixed.
Technical Parameters:
model | VHJ-0.18 | VHJ-0.3 | VHJ-0.5 | VHJ-1.0 | VHJ-1.5 | VHJ-2.0 | VHJ-2.5 | VHJ-3.0 | VHJ-4.0 | VHJ-5.0 | VHJ-6.0 |
Production capacity (kg/time) | 90 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
Equipped with vacuum pump model | W2 | W2 | W2 or SK-1.5 | W3 or SK-3 | W3 or SK-3 | W3 or SK-3 | W3 or SK-6 | W4 or SK-6 | W4 or SK-9 | W4 or SK-9 | W4 or SK-12 |
Feed time (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
Full volume (m 3 ) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
Stirring speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
Motor power (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
Swing height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
