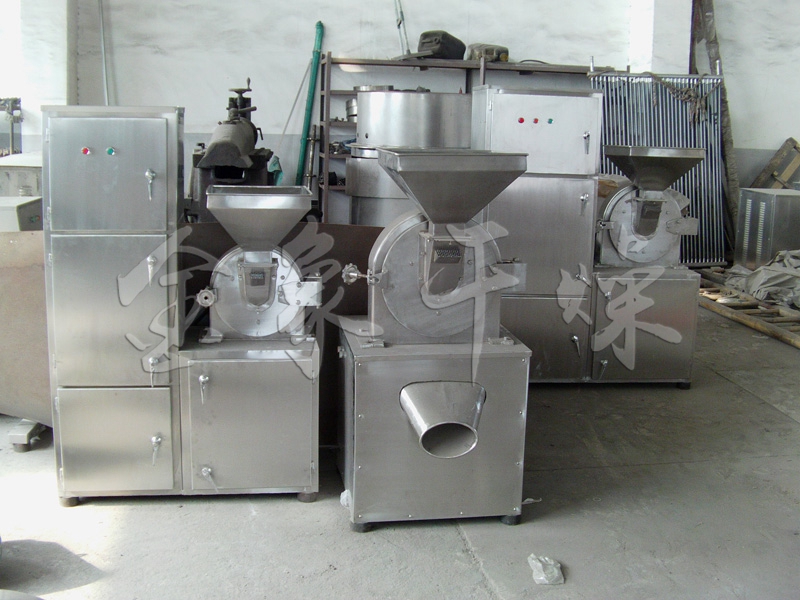

30B-X series universal crusher
30B-X series universal crusher
Summary：Application range:1. This machine is suitable for the crushing of brittle materials in the pharmaceutical, chemical, food, pesticide and other industries. It is widely used. 2. The high-speed relative motion of the movable sprocket and the fixed sprocket is used to make the pulverized material crushed by the combined action of tooth impact, friction and material impact.3.This machine is suitable f···
Detailed description
Application range:
1. This machine is suitable for the crushing of brittle materials in the pharmaceutical, chemical, food, pesticide and other industries. It is widely used.
2. The high-speed relative motion of the movable sprocket and the fixed sprocket is used to make the pulverized material crushed by the combined action of tooth impact, friction and material impact.
2. The high-speed relative motion of the movable sprocket and the fixed sprocket is used to make the pulverized material crushed by the combined action of tooth impact, friction and material impact.
3. This machine is suitable for the crushing of brittle materials in medicine, chemical, food, pesticide and other industries. It is widely used.
4. This machine uses the high-speed relative motion of the movable toothed disc and the fixed sprocket to make the pulverized material get crushed by the combined action of tooth impact, friction and material impact.
Equipment process technology:
Technical Parameters:
model | 20B | 30B | 40B | 60B |
Production capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
Spindle speed (r/min) | 4500 | 3800 | 3400 | 2800 |
Feed particle size (mm) | 6 | 10 | 12 | 15 |
Finished product fineness (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
Motor power (kw) | 4 | 5.5 | 11 | 15 |
Weight (kg) | 250 | 320 | 550 | 680 |
Dimensions (length × width × height) (mm) | 350×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
